Escalator riser cleaning Cleaning Machine – Vertical Disc System

SKU G-EM20 Categories ,

Description




English



Arabic
Professional Escalator Step and Groove Cleaning Machine

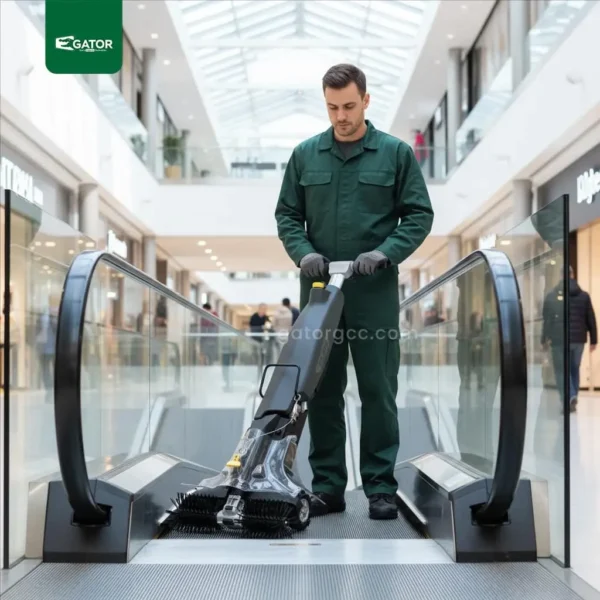

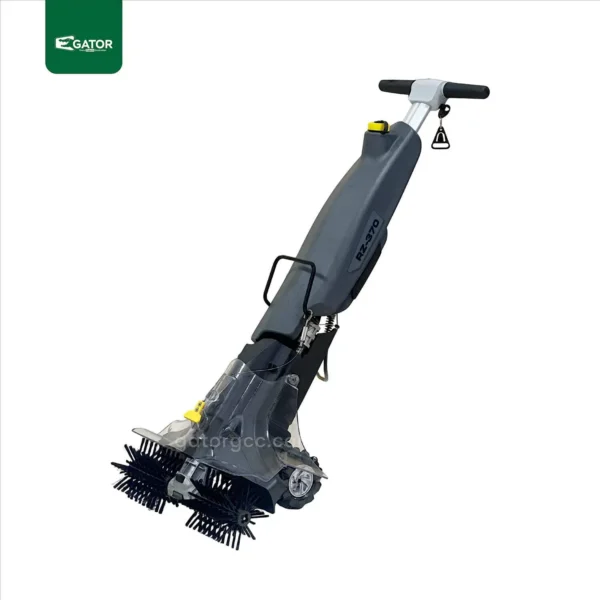

This specialized vertical disc cleaning machine is designed exclusively for cleaning escalator steps, grooves, and hard-to-reach corner areas. Its upright structure allows precise alignment with escalator surfaces, ensuring effective dirt removal from grooves and edges without damaging the escalator structure.

The rotating disc system combined with controlled water spraying helps loosen and remove deeply embedded dirt, dust, and residues commonly found in escalator steps. The machine is engineered for safe, stable operation while allowing the operator to move efficiently along the escalator, delivering consistent cleaning results with reduced physical effort.

Main Uses & Applications:
  • Cleaning escalator steps and grooves
  • Deep cleaning of escalator edges and corners
  • Maintenance of commercial escalators
  • Cleaning escalators in malls, airports, hotels, and public buildings
  • Professional escalator hygiene and upkeep

Technical Specification

Technical Specification

Product Type: Vertical disc cleaning machine

Machine Dimensions (L × W × H):

  • 325 × 380 × 1130 mm
Working System:
  • Disc working width: 370 mm
  • Disc brush speed: 1600 RPM
  • Brush motor power: 350 W
  • Brush gap: 102 mm
Fluid System:
  • Solution tank capacity: 2.5 L
  • Water flow rate: 110 ml/min
  • Spray control: Handle-mounted on/off switch
Electrical Specifications:
  • Input voltage: 90–240V AC
  • Frequency: 50–60 Hz
Operational Data:
  • Typical operating weight: 15 kg
  • Noise level (operator position): 75 dB(A)
Controls & Interface:
  • Control panel integrated on handle
  • Brush motor on/off switch
  • Nozzle spraying on/off switch
Included Components

● 1 × Vertical cleaning machine

● 1 × Stand

● 1 × Power cord

● 1 × User manual

Operation & Maintenance Summary

Operation Guidelines:
  • Open the splash guard before starting

  • Operator position recommended two steps below the escalator level

  • Begin cleaning from the lower inner step area

  • Move the disc vertically and guide the machine side to side

  • Activate water or solution spray using the handle button

Daily Maintenance:
  • Clean brushes after each use

  • Use the quick-lock system to remove brushes

  • Inspect and clean the filter regularly

  • Rinse spray nozzles on a regular basis
